Battery Systems
At EcoPower Solar Solutions in Woodbridge, we provide cutting-edge battery systems designed to store the energy generated by your solar panels. Our battery systems ensure that you have access to reliable, renewable energy even when the sun isn’t shining. These systems are engineered to maximize energy storage, allowing you to use solar power during the night or during power outages. With our advanced battery systems, you can reduce your reliance on the grid, lower your electricity bills, and enjoy peace of mind knowing you have a sustainable energy solution in place.
GSL Energy High Voltage Battery Energy Storage System
The GSL Energy Battery Energy Storage System (ESS) is a versatile and scalable solution designed for residential, commercial, and utility applications. It features a modern design with high energy density, long service life, and easy installation, making it an excellent choice for emergency power backup.
Product Highlights
- Scalable Capacity: Available in multiple models (GSL-R20K to GSL-R60K) with capacities ranging from 20.48kWh to 61.44kWh.
- High Voltage Range: Supports working voltage ranges from 176-691.2V, depending on the model, with nominal voltages from 204.8V to 614.4V.
- Compact Design: Floor-standing installation with varying dimensions based on capacity, suitable for both indoor and outdoor use.
Key Features
- Battery Type: Utilizes LFP (LiFePO4) batteries for enhanced safety and reliability.
- Advanced Communication: Equipped with CAN/RS485 communication ports for easy integration and monitoring.
- Durability: Rated for a 10-year cycle life, with an IP20 waterproof rating.
- Operating Range: Functions within a wide temperature range, supporting charge between 0-55°C and discharge between -20-55°C.
- High Performance: Peak charge/discharge current of 150A, with a low discharge rate of ≤3.5% per month at 25°C.
GSL Energy Residential ESS (10kWh/15kWh/20kWh)
The GSL Energy Residential ESS is a versatile energy storage solution designed for home backup and daily use. It offers flexible capacity options and is built for reliability and long-term performance, making it ideal for various residential applications.
Product Highlights
- Scalable Capacity: Available in 10kWh, 15kWh, and 20kWh models with nominal voltages of 204.8V, 307.2V, and 409.6V, respectively.
- Compact Design: The system features a space-saving design, with dimensions varying according to capacity, making it suitable for both indoor and outdoor installation.
Key Features
- Battery Chemistry: Utilizes LiFePO4 (Lithium Iron Phosphate) for enhanced safety and longevity.
- High Performance: Supports a maximum continuous working current of 100A, with a charge cut-off voltage ranging from 228V to 405V and a discharge cut-off voltage ranging from 180V to 350V, depending on the model.
- Durability: Rated for over 5000 cycles at 80% Depth of Discharge (DOD) at 25°C and over 4000 cycles at 40°C, with a design life of 10 years.
- Temperature Range: Operates efficiently across a wide temperature range, with charge temperatures from 0℃ to 60℃ and discharge temperatures from -20℃ to 60℃.
- Communication and Integration: Equipped with RS232-PC, RS485-PC, and Canbus-Inverter communication interfaces for seamless integration and monitoring.
- Certification: Certified with UN38.3, MSDS, UL1973 (Cell), and IEC62619 (Cell), ensuring safety and compliance.

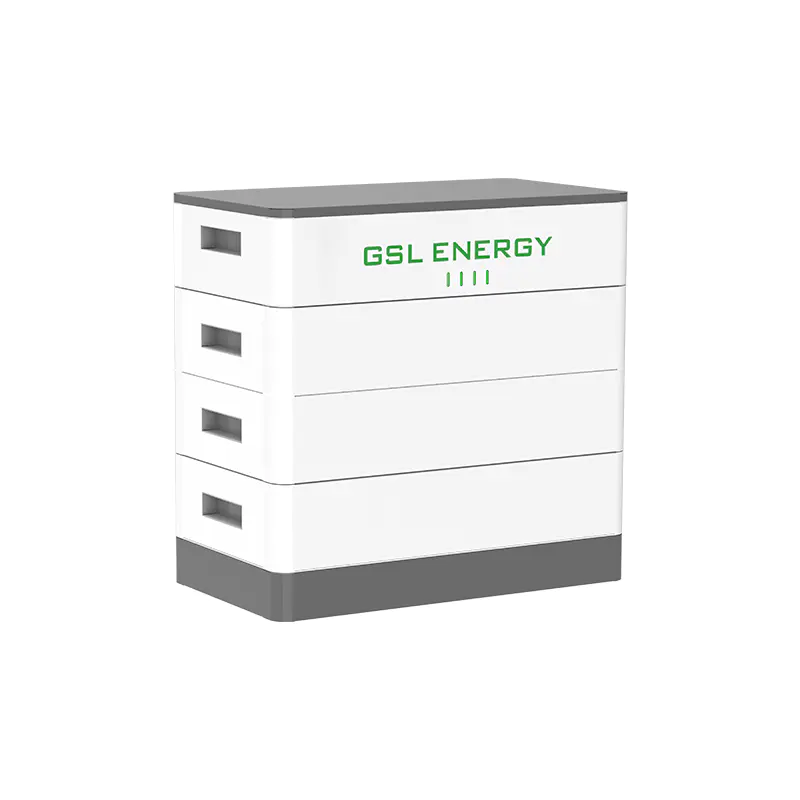

GSL Energy Residential ESS (G3~G8 Series)
The GSL Energy Residential Energy Storage System (ESS) is a compact and scalable solution designed for home energy storage. It offers flexible capacity options and reliable performance, making it suitable for emergency backup and daily use in residential settings.
Product Highlights
- Scalable Capacity: Available in models ranging from GSL-G3 (11.52kWh) to GSL-G8 (30.72kWh) with nominal voltages from 230.4V to 614.4V.
- Compact Design: Floor-standing units with dimensions increasing based on capacity, suitable for both indoor and outdoor installations.
Key Features
- Battery Type: Utilizes LFP (LiFePO4) batteries for enhanced safety, long life, and high power density.
- Advanced Communication: Equipped with CAN/TCP/IP communication ports for seamless integration and monitoring.
- Operating Range: Supports a wide temperature range for charging (0-55°C) and discharging (-20-60°C).
- Durability: Rated for a 10-year cycle life with IP20 waterproofing.
- High Performance: Peak charge/discharge current of 50A, with a discharge rate of ≤6% per month at 25°C.
- Scalability: Supports 3S~8S module series connections and up to 5 units in parallel for expanded capacity.
GSL Energy 5kWh 100Ah 51.2V Stack Server Rack Battery
The GSL Energy Stack Server Rack Battery is an efficient and space-saving solution for household energy storage, designed to meet current and future energy demands with its modular design and high energy density.
Product Highlights
- Capacity: 5.12kWh nominal capacity with 4.61kWh usable energy, scalable up to 81.92kWh with up to 16 units in parallel.
- Compact Design: 19-inch rack-mounted installation, making it space-efficient and adaptable to various installation environments.
Key Features
- Battery Chemistry: Utilizes LiFePO4 (Lithium Iron Phosphate) for safety, reliability, and long life.
- High Performance: Operating voltage range of 46-56V, with a recommended and maximum charge/discharge current of 100A and a maximum discharge C-rate of 1C.
- Durability: Rated for over 6000 cycles at 80% End of Life (EOL), with a recommended Depth of Discharge (DoD) of 90%.
- Certification: Certified with CB-IEC62619, CE-EMC, MSDS, and UN38.3 for safety and compliance.
- Warranty: 5-year warranty with a life cycle power guarantee of 22.42MWh at 80% EOL.
GSL Energy 5kWh 100Ah 48V Stack Server Rack Battery
The GSL Energy Stack Server Rack Battery is an efficient and scalable energy storage solution designed for household installations. It features a high energy density and a modular design, making it adaptable to evolving energy needs.
Product Highlights
- Capacity: 5.12kWh nominal capacity with 4.61kWh usable energy, scalable up to 76.8kWh with up to 16 units in parallel.
- Compact Design: 19-inch rack-mounted installation, offering a space-saving solution for various settings.
Key Features
- Battery Chemistry: Utilizes LiFePO4 (Lithium Iron Phosphate) for enhanced safety, reliability, and long cycle life.
- Performance: Operates within a voltage range of 44-54V, with a recommended charge/discharge current of 50A, a maximum of 100A, and a peak current of 120A for 2 minutes.
- Durability: Rated for over 6500 cycles at 80% End of Life (EOL), with a recommended Depth of Discharge (DoD) of 90%.
- Environmental Tolerance: Supports charging temperatures from 0℃ to 55℃, discharging temperatures from -20℃ to 55℃, and storage temperatures from 0℃ to 35℃.
- Certification: Certified with CB-IEC62619, CE-EMC, MSDS, and UN38.3 for safety and compliance.
- Warranty: Includes a 10-year warranty with a life cycle power guarantee of 21.02MWh at 80% EOL.
GSL Energy Cabinet Stack Server Rack Battery
The GSL Energy IP65 Cabinet Stack Server Rack Battery is a high-capacity, modular energy storage solution designed for both residential and commercial installations. Its robust design and high energy density make it ideal for environments requiring reliable, scalable energy storage.
Product Highlights
- Capacity: Available in 28.8kWh (48V) and 30.72kWh (51.2V) models, with scalability up to 345.6kWh and 368.64kWh, respectively, using up to 12 units in parallel.
- Compact Design: 19-inch rack-mounted cabinet suitable for outdoor installation, offering space-saving and versatile mounting options.
Key Features
- Battery Chemistry: Utilizes LiFePO4 (Lithium Iron Phosphate) for enhanced safety, long life, and high reliability.
- Performance: Operates within voltage ranges of 44-54V (48V model) and 46-56V (51.2V model), with a recommended charge/discharge current of 300A and a peak current of 400A for 2 minutes.
- Durability: Rated for over 6500 cycles at 80% End of Life (EOL), with a recommended Depth of Discharge (DoD) of 90%.
- Indicators: Master LED indicators display State of Charge (SOC) and system status (working, alarming, protecting).
- Certification: Certified with CB-IEC62619, CE-EMC, MSDS, and UN38.3 for compliance with safety standards.
- Warranty: Includes a 15-year warranty with a life cycle power guarantee of 142MWh at 80% EOL.
